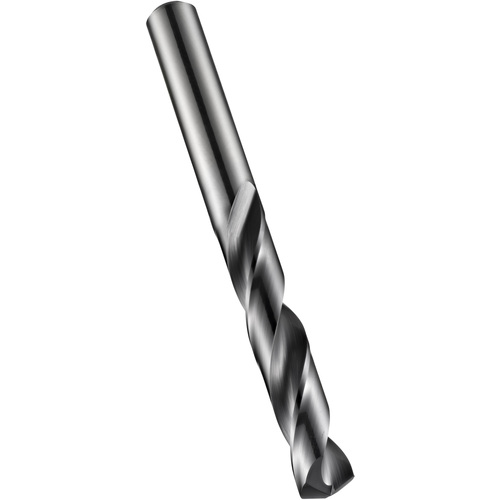

23/64″ Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, 140°, TiAlN, 2 Flute, External Coolant, DIN 6535 HA Solid Carbide Drill
E-code # R45423/64
| Drill Bit Size / Cutting Diameter (DC) | 23/64″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 23/64″ | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.3594″ | Flute Type | Continously Thinned Web (CTW) |
| Length Group | 5xD | Measurement Type | Inch |
| Coating | TiAlN | Style | Force X |
| Applicable Material | | Carbide | | Series/List # | R454 |
| Application | General Drilling | Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
Product Features
| Family Description | E-code # R45423/64 | Country of Origin | USA |
Shipping Info
Package Weight
0.183
