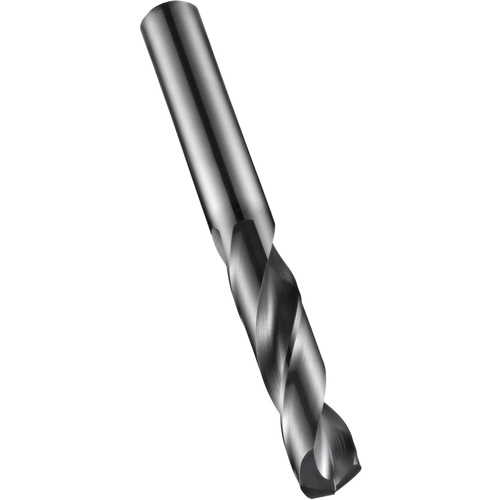

9/16″ Dia. × 16 mm Shank × 65 mm Flute Length × 115 mm OAL, 3xD, 140°, TiAlN, 2 Flute, External Coolant, DIN 6535 HA Solid Carbide Drill
E-code # R4589/16
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Tool Type | Solid Drills |
| Decimal Equivalent | 0.5625″ | Flute Type | Continously Thinned Web (CTW) |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | TiAlN | Style | Force X |
| Applicable Material | | Carbide | | Series/List # | R458 |
| Application | General Drilling | Usable Length (LU) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Length Chip Flute (LCF) | 65 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 115 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 48 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shape | Solid Drills |
Product Features
| Family Description | E-code # R4589/16 | Country of Origin | USA |
Shipping Info
Package Weight
0.525
